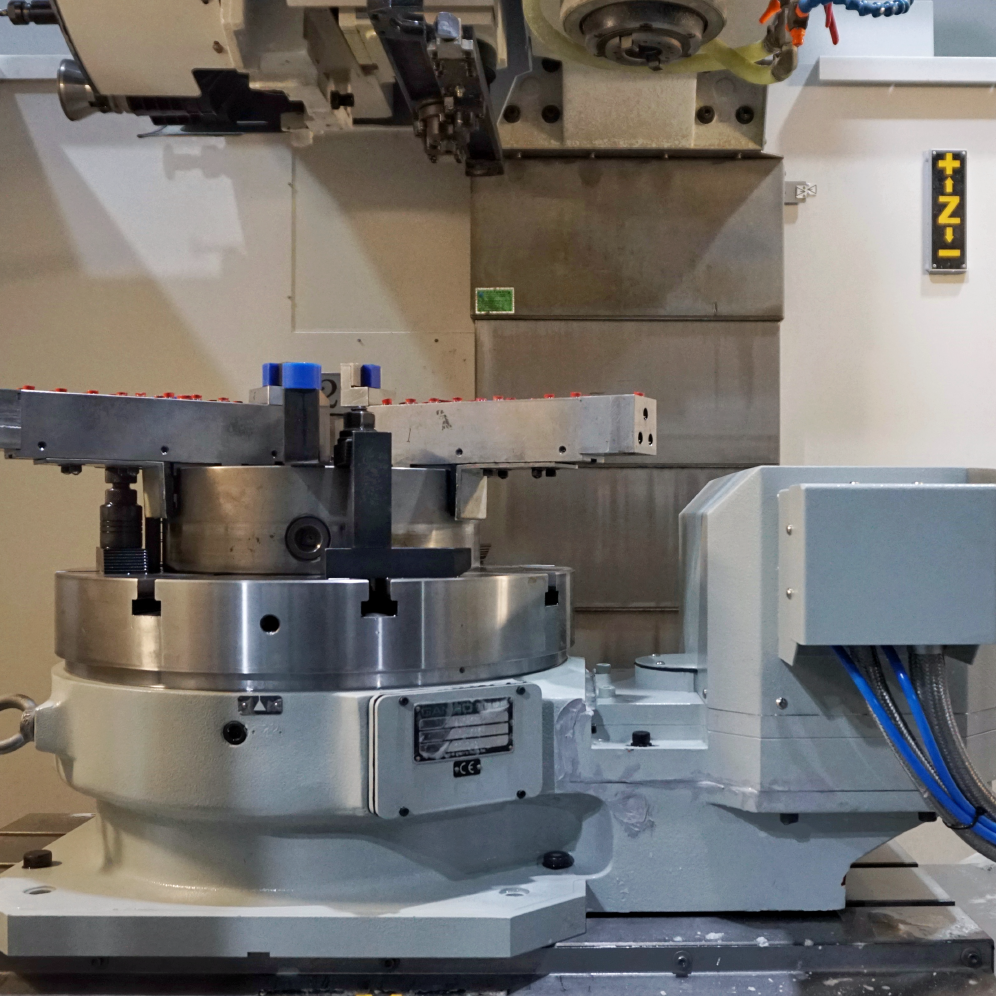

5TH AXES TILTING

CNC Tilting Rotary Tables are two axes (4th & 5th Axes) units and can rotate the component in two axes making a machine capable of accessing the areas which can not be reached with only 3 axes. Tilting tables can also interpolate with machine axes to generate profile such as impellers. Using Tilting Rotary Table a standard 3 axes machine can be converted into a 5 axes machine.

CLICK HERE

GANRO 4TH AXES

The new CNC Rotary Table from GANRO has got higher speed and higher clamping torque. Thus making it suitable for machining complex components like turbine blades, when used in synchronous with machine axes.The new CNC rotary table DR Series has got better aesthetics. Further provides higher productivity and are available with Right Hand, Left Hand or Rear Motor mounting arrangement.

CLICK HERE

COMPOUND ANGLE

"SH Series adopt advanced integrated style design for swiveling structure and positioning design. The spindle headstock passes through the central axis of swiveling structure, combined with swiveling unit. Reduction servo motor drive the screw to transmit spindle headstock for angle rotation. The rotation encoder mounted on the central axis is used for controlling rotation angel. So, the spindle can be used for inclined plane machining on the workpiece to have the advantage of high positioning accuracy and high rigidity.

CLICK HERE

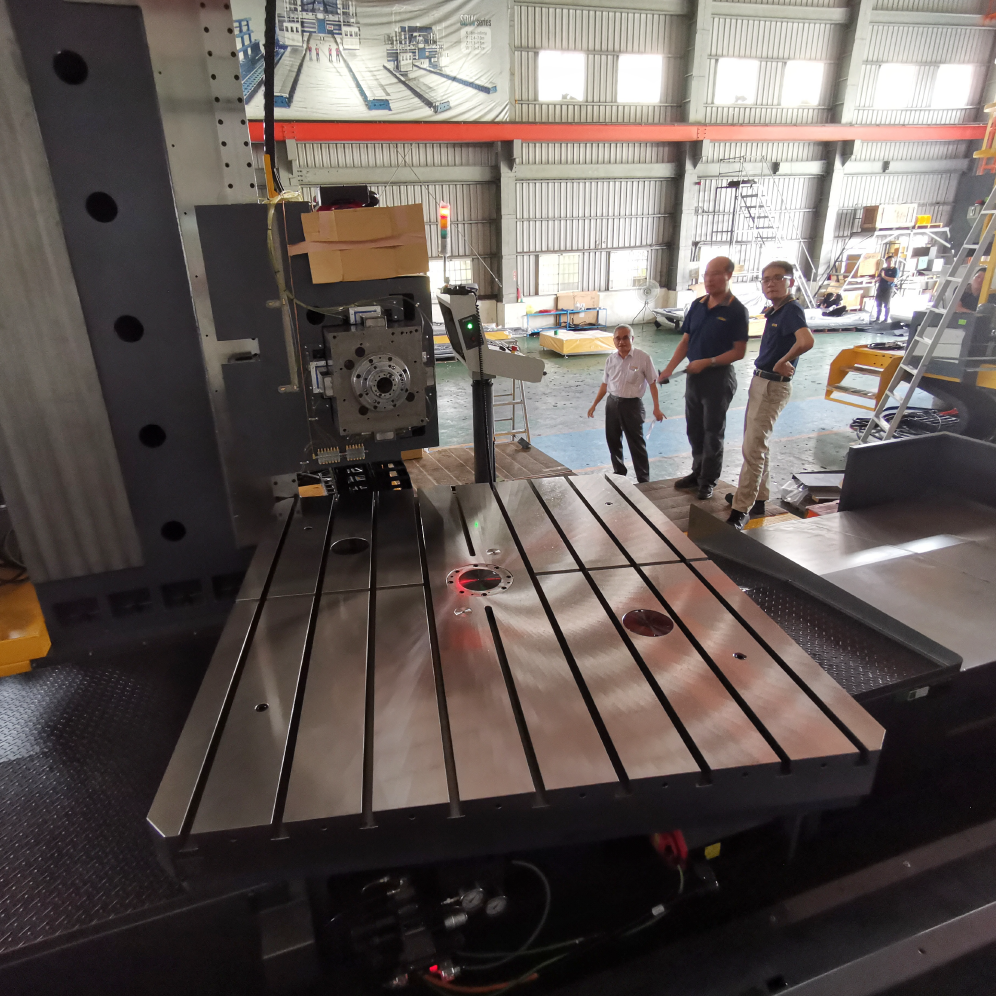

EMBEDDED TABLE

"Big size embedded table to make 5 axis simultaneous machining function which is economic benefits investment. HPD series is suitable for large size of vertical or horizontal machining center and can enhance the machining acccuracy and cut the machining time. Immediate effect can be obtained.
