2-Piece

  1. > PRODUCTS
  2. > Accessory
  3. > Coupling
  4. > 2 PCS Hirth

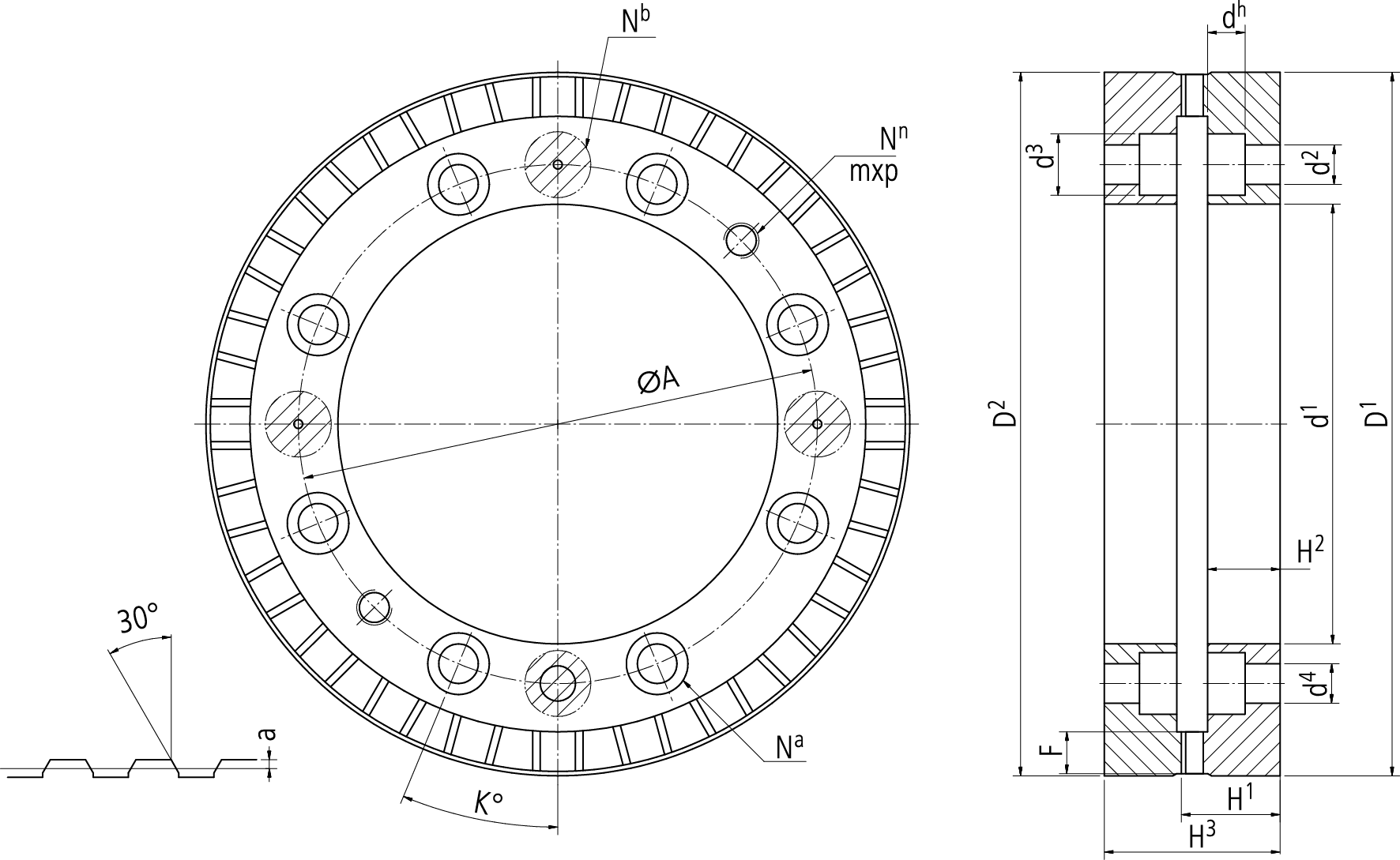

Item Model No. D1 D2 d1 N F H1 H2 H3 Na ΦA d2 d3 dh Nb ΦA K° d4 Nn ΦA mxp a ±A
01 15-080-44XV 80 79 44 15 8 15.3 12.0 29 6 60 6.6 11.0 8.8 4 60 30° 2 6 60 M8x1.25 2 1.8
02 18-100-40XV 100 98 40 18 9 18.37 14.0 34 6 60 6.6 11.0 6.0 3 60 30° 8 2 60 M8x1.25 1.37 1.22
03 24-100-40XV 100 98 40 24 8 18.3 14.0 34 6 60 6.6 11.0 6.0 3 60 30° 8 2 60 M8x1.25 1.3 1.15
04 24-120-60XV 120 118 60 24 8 18.3 14.0 34 6 80 6.6 11.0 6.0 4 80 30° 8 2 80 M8x1.25 1.3 1.15
05 30-120-60XV 120 118 60 30 7 19.3 14.0 34 6 80 6.6 11.0 6.0 4 80 30° 8 2 80 M8x1.25 2.3 2
06 36-140-80XV 140 138 80 36 11 18.52 14.0 34 6 100 6.6 11.0 6.0 3 100 30° 8 2 100 M8x1.25 2.5 2.2
07 24-160-100XV 160 158 100 24 9 21.73 16.5 40 8 118 9.0 14.0 8.0 4 118 22.5° 10 2 118 M8x1.25 2.5 2.3
08 24-180-120XV 180 178 120 24 9 21.61 16.5 40 8 140 9.0 14.0 8.0 3 140 22.5° 8 2 140 M8x1.25 1.61 1.44
09 36-180-120XV 180 178 120 36 9 21.37 16.5 40 8 140 9.0 14.0 8.0 3 140 22.5° 8 2 140 M8x1.25 1.37 1.22
10 40-180-120XV 180 178 120 40 9 21.76 16.5 40 8 140 9.0 14.0 8.0 3 140 22.5° 8 2 140 M8x1.25 1.76 1.57
11 24-200-120XV 200 198 120 24 9 21.63 16.5 40 8 150 9.0 14.0 8.0 4 150 22.5° 8 2 150 M8x1.25 1.63 1.45
12 36-200-120XV 200 198 120 36 11 21.52 16.5 40 8 150 9.0 14.0 8.0 3 150 22.5° 8 2 150 M8x1.25 1.52 1.36
13 72-200-120XV 200 198 120 72 9 20.99 16.5 40 8 150 9.0 14.0 8.0 3 150 22.5° 8 2 150 M8x1.25 0.99 0.89
14 48-210-135XV 210 208 135 48 13 21.71 16.5 40 12 165 9.0 14.0 8.0 3 158 15° 10 2 165 M8x1.25 1.71 1.53
15 60-250-160XV 250 248 160 60 9 21.63 16.5 40 8 195 11.0 17.5 10.0 3 195 22.5° 10 2 195 M10x1.50 1.63 1.45
16 72-250-160XV 250 248 160 72 11 21.42 16.5 40 8 195 11.0 17.5 10.0 3 195 22.5° 10 2 195 M10x1.50 1.42 1.27
17 360-250-160XV 250 248 160 360 7 20.5 16.5 40 8 195 11.0 17.5 10.0 3 195 22.5° 10 2 195 M10x1.50 0.5 0.4
18 72-280-190XV 280 278 190 72 11 21.42 16.5 40 8 222 13.0 20.0 12.0 3 222 22.5° 10 2 222 M10x1.50 1.42 1.27
19 360-280-190XV 280 278 190 360 8 20.60 16.5 40 8 22 13.0 20.0 12.0 4 222 22.5° 10 2 222 M10x1.50 0.6 0.5
20 60-320-210XV 320 318 210 60 11 30.46 25.5 58 10 258 13.0 20.0 12.0 4 258 18° 12 4 258 M12x1.75 1.46 1.30
21 72-320-210XV 320 318 210 72 11 30.74 25.5 58 12 258 13.0 20.0 12.0 3 258 15° 12 4 258 M12x1.75 1.74 1.55
22 360-320-210XV 320 318 210 360 9 29.6 25.5 58 12 258 13.0 20.0 12.0 3 258 15° 12 4 258 M12x1.75 0.6 0.5
23 48-400-280XV 400 398 280 48 13 31.52 26.0 60 12 335 13.0 20.0 12.0 3 335 15° 12 4 335 M12x1.75 1.52 1.36
24 60-400-280XV 400 398 280 60 15 31.85 26.0 60 12 335 13.0 20.0 12.0 3 335 15° 12 4 335 M12x1.75 1.82 1.62
25 72-400-280XV 400 398 280 72 13 31.52 26.0 60 12 335 13.0 20.0 12.0 3 335 15° 12 4 335 M12x1.75 1.52 1.36
26 360-400-280XV 400 398 280 360 13 30.6 26.0 60 12 335 13.0 20.0 12.0 3 335 15° 12 4 335 M12x1.75 0.6 0.5
27 48-520-415XV 520 518 415 48 15 31.97 26.0 60 12 450 13.0 20.0 12.0 3 450 15° 12 4 450 M12x1.75 1.97 1.76
28 72-520-415XV 520 518 415 72 15 31.97 26.0 60 12 450 13.0 20.0 12.0 3 450 15° 12 4 450 M12x1.75 1.97 1.76
29 360-520-415XV 520 518 415 360 15 30.8 26.0 60 12 450 13.0 20.0 12.0 3 450 15° 12 4 450 M12x1.75 0.8 0.7
30 60-600-480XV 600 598 480 60 15 36.95 26.0 70 12 530 17.0 26.0 16.0 4 530 15° 12 4 530 M12x1.75 1.95 1.74
31 72-600-480XV 600 598 480 72 19 37.28 29.0 70 12 530 17.0 26.0 16.0 3 530 15° 12 4 530 M12x1.75 2.28 2.04
32 360-600-480XV 600 598 480 360 15 36 29.0 70 12 530 17.0 26.0 16.0 3 530 15° 12 4 530 M12x1.75 1 0.9
33 72-700-560XV 700 698 560 72 19 36.7 29.0 70 12 610 17.0 26.0 16.0 3 610 15° 14 4 610 M12x1.75 1.7 1.5
34 360-700-560XV 700 698 560 360 19 36 29.0 70 12 610 17.0 26.0 16.0 3 610 15° 14 4 610 M12x1.75 1 0.9
35 72-1000-830XV 1000 698 830 72 22 61.7 54.5 120 12 900 17.0 26.0 16.0 4 900 10° － 4 900 M12x1.75 1.7 1.5
36 360-1000-830XV 1000 998 830 360 22 61.5 54.5 120 18 900 17.0 26.0 16.0 4 900 10° － 4 900 M12x1.75 1.5 1.4
37 72-1200-1000XV 1200 1198 1000 72 22 71.7 64.5 140 20 1080 21.0 32.0 20.0 4 1080 9° － 4 1080 M16x2.00 1.7 1.5
38 360-1200-1000XV 1200 1198 1000 360 22 71.6 64.5 140 20 1080 21.0 32.0 20.0 4 1080 9° － 4 1080 M16x2.00 1.6 1.5
